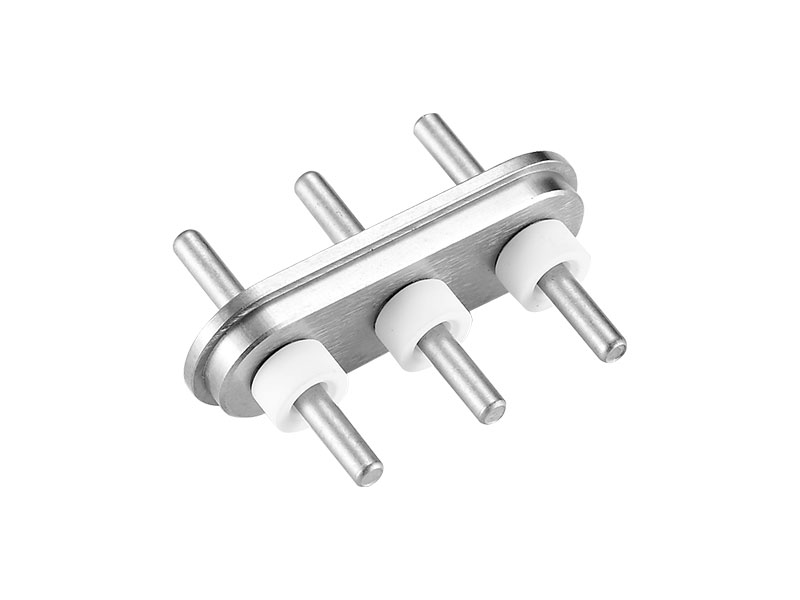

新能源汽車電動壓縮機接線柱
新能源汽車電動壓縮機接線柱
Application: Air conditioning compressors for hybrid electric vehicles and all-electric vehicles
Product features: The product is glass and metal sintering seal connection; According to the application requirements, the surface on both sides of the main body can choose ceramic or silicone rubber, the number and position of the needle can be selected, and the coating material of the needle surface can be selected;
The product has the characteristics of high pressure resistance, strong mechanical properties, etc.
The installation of the terminal can be selected according to the requirements of screw fixation, welding type or bolt fixed three kinds of installation;
Can be customized according to size and functional requirements.
Typical specifications: Air tightness: Helium, <1×10-7cm3/sec
Insulation resistance: 500VDC >10000 Mω
Ac voltage: 2500VAC <0.5mA leakage current (can be adjusted according to specific customer application)
Working pressure: According to the customer's specific application design
Working pressure: up to 15000psi blast test, according to customer design
